4000RPM 3 Phase Centrifuge 220V 380V Solid Liquid Separation Centrifuge For Waste Water

Name: 4000RPM 3 Phase Centrifuge 220V 380V Solid Liquid Separation Centrifuge For Waste Water
Brand: Huading
Price: 22 USD

Buy cheap 4000RPM 3 Phase Centrifuge 220V 380V Solid Liquid Separation Centrifuge For Waste Water product

Place of Origin : China

Brand Name : Huading

MOQ : 1 set

Price : $22,000-25,000 / set

product type : liquids

video outgoing-inspection : Provided

machinery test report : Provided

core components : bowl

voltage : 220/ 380 / 415

power(w) : 5.5-132

warranty : 1 Year

key selling points : High Productivity

Capacity : 501-1000l/h

Weight (KG) : 1200

setting speed : 4000 RPM

Product name : Decanter Centrifuge

Name : Automatic Sugar Centrifugal Machine

Condition : New

Marketing Type : New Product 2020

Warranty of core components : 5 years

Contact Now

Solid liquid liquid 3phase separator machine decanter centrifugal for waste oil water separation

Product Description

Standard equipments

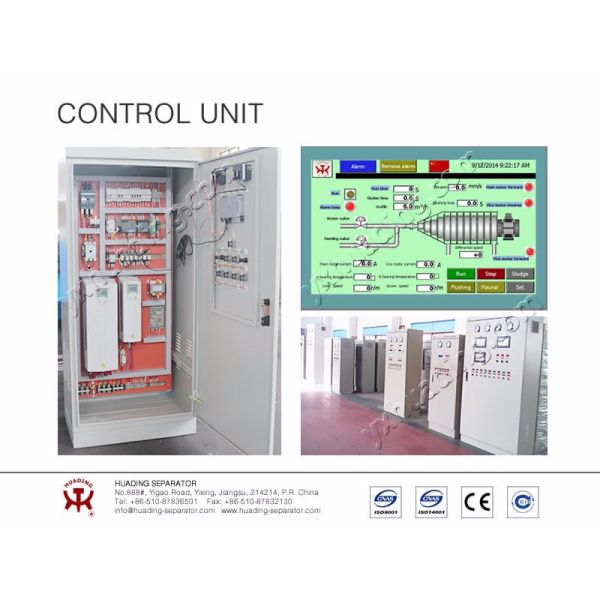

The decanter centrifuge include a motor control center panel to operate the main drive, back drive, and feed pump. A differential speed controller maintains optimal solids balance in the decanter during operation. All parts exposed to wear are protected by special metal hard facing, ceramic wear bushes,inserts, etc. Bushes and inserts are easily exchangeable, even under field conditions. Maintenance tools and spare parts are supplied.

4000RPM 3 Phase Centrifuge 220V 380V Solid Liquid Separation Centrifuge For Waste Water

Feature

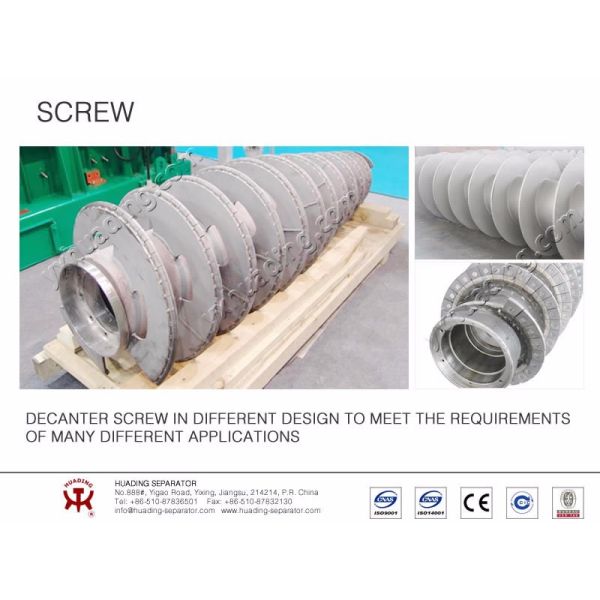

1.All parts directly touch to material are made of stainless steel 2.Continuous and automatic operation can minimize labor costs 3.Two motor drive, adjustable bowl and screw speed via VFD 4.Continuous spiral discharging, PLC control and screen touch operation 5.The scroll conveyor was coated with wearable alloy or welded with alloy plate(according to the material characteristics and customer demand) 6.Safety protection: rotation rate detection over, vibration protection, motor overload and overheat protection, protection for scroll when zero differential speed occurs

Technical specification

Huading Separator has been developing and manufacturing decanters for over 15 years and is one of the Chinese
leading decanter manufacturers, Huading now have many different types of decanters applied in many different industry and achieve very good benefit for our customers.

bowl ID
(mm)

bowl speed
(rpm)

L / D

g - force

capacity
(m3/h)

solids removal
(m3/h)

primary motor
(Kw)

Weight
(Kg)

Dimension
(mm)

250

4800~5400

3.0~5.0

2000~3500

3~5

0.4

760

1600×1100×850

300

4200~4600

3.0~5.0

2000~3500

3~15

0.8

11~15

1500

2470×1230×850

350

3700~4200

3.0~5.0

2000~3500

5~20

1.2

5~22

2000

2790×1300×880

400

3200~3900

3.0~4.8

2000~3500

5~30

18.5~30

2600

2950×1400×850

450

3000~3700

3.0~5.0

2000~3500

5~45

2.5

22~37

3200

3300×1500×920

530

2700~3450

3.0~5.0

2000~3500

10~80

30~55

5200

3730×1600×1100

580

2600~3300

3.0~5.0

2000~3500

10~90

45~75

6900

4000×1400×1600

650

2400~3100

3.0~5.0

2000~3500

20~105

37~90

8200

4300×1900×1350

760

2200~2900

3.0~5.0

2000~3500

30~120

55~135

12000

5000×2500×1500

900

1800~2600

3.0~5.0

2000~3500

40~180

75~160

18000

6500×2700×1500

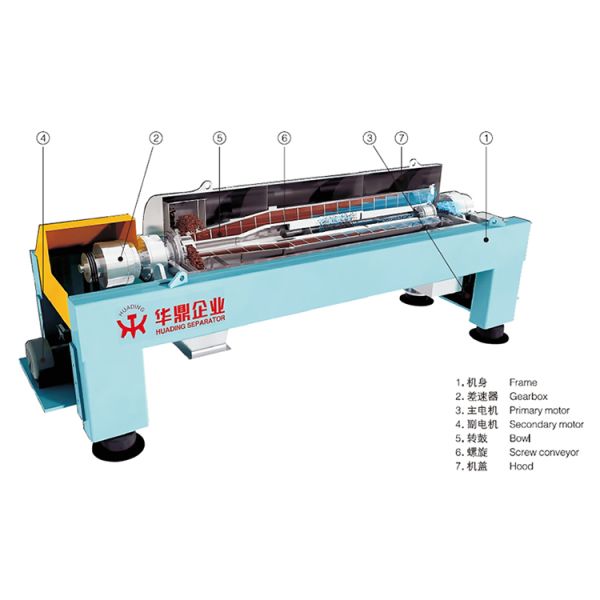

Working principle

The horizontal screw discharge sedimentation centrifuge is a kind of machinery that carries out continuous separation of materials of density difference in suspensions by using the centrifugal sedimentation principle. Its basic principle is: the bowl and feeding screw make high-speed rotation with a certain differential speed between them. The materials are introduced continuously by the feed tube into the inner cylinder of the spiral material pusher, and then enter the bowl after acceleration. Under the action of centrifugal force field, the heavier solids will deposit on the bowl walls and form residue layers. The spiral material pusher will continuously push the deposited solids to the taper end of the bowl and discharge them out of the machine from the residue outlet after dehydration in the drying area. The machine can realize continuous feeding, sedimentation, separation, washing and discharging when it carries out full-speed running. It has such features as compact structure, continuous operation, stable production capacity, convenient maintenance, etc. It is suitable for separating suspensions containing solids with particle diameters than 0.005mm and concentration ranging within 2-40%. It is widely applied in such industries as chemical industry, light industry, medical, food, environmental protection, etc.

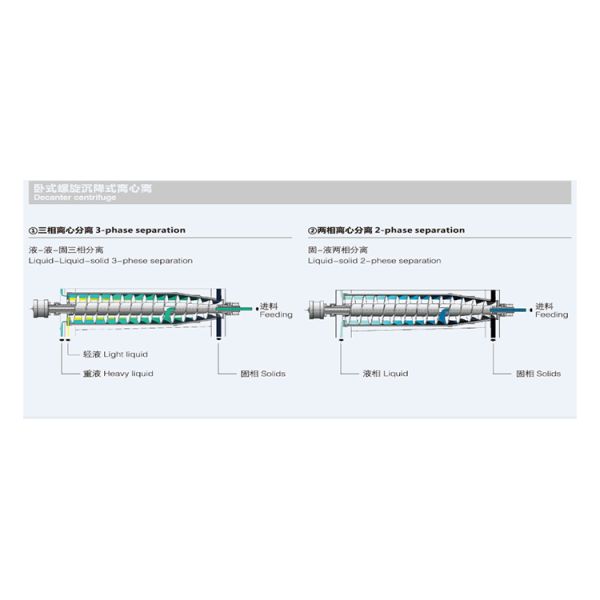

The three-phase working principle

The bowl and screw make high-speed rotation with a certain differential speed between them. The materials will enter the bowl from the feed tube. Under the action of centrifugal force field, the liquid of the high specific weight will accumulate on the inner walls if the bowl, and be discharged through the centripetal pump or overflow plate. The liquids of low specific weight will form an inner liquid ring, stick to the surfaces of heavy liquids, and be discharged from the overflow channel. Under the action of the spiral material pusher, the solids in the materials will be continuously pushed to the taper end of the bowl and discharged from the residue outlet after going trough the drying area.

The two-phase working principle

After entering the cavity of the spiral material pusher through the feed tube, the suspensions will enter the cavity of the bowl through the material vent. The solids after sedimentation will move to the small end of the bowl under the pushing action at the differential speed of the screw, and be finally discharged from the solid discharges port. Under the action of centrifugal force, the liquids will form a hollow liquid ring and move to the large end of the bowl. After running over the adjustable overflow baffle, they will be discharged from the liquid outlet under the action of gravity.

Typical applications

Huading decanter application

1. Water treatment: sludge dewatering, sewage concentration, waste water treatment...

2. Vegetable oil and fats: soybean oil, fish oil, CBD oil...

3. Beverage clarification: fruit juice, soy milk, beer yeast...

4. Fermentation industry: algae concentration, yeast extraction...

5. Pharmaceutical biotechnology: TCM preparation, pharmaceutical intermediates...

6. Plant extraction: tea, loquat leaf...

7. Mineral oil: fuel oil, lubricant, waste oil...

8. Chemical industry: alum, aluminum hydroxide, clay, diatomite...

Detailed Images

Packing&Shipping

Company Profile

Huading Separator, Yixing Huading Machinery Co.,Ltd, is one of the market leaders in the field of centrifugal separation
technology in China. The company has over 60 years experience in the design and manufacturing of centrifugal separation equipment. Complete systems, customized for specific applications, can be provided in a compact, fully tested, skid-mounted assembly. The company’s equipment, systems and services are dedicated to assisting customers in optimizing the performance of their processes. The solutions help customers to clarify, concentrate, and separate products in production. Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering andwastewater treatment etc.
Huading Separator’s organization works closely with customers to help them stay ahead in their business line.
